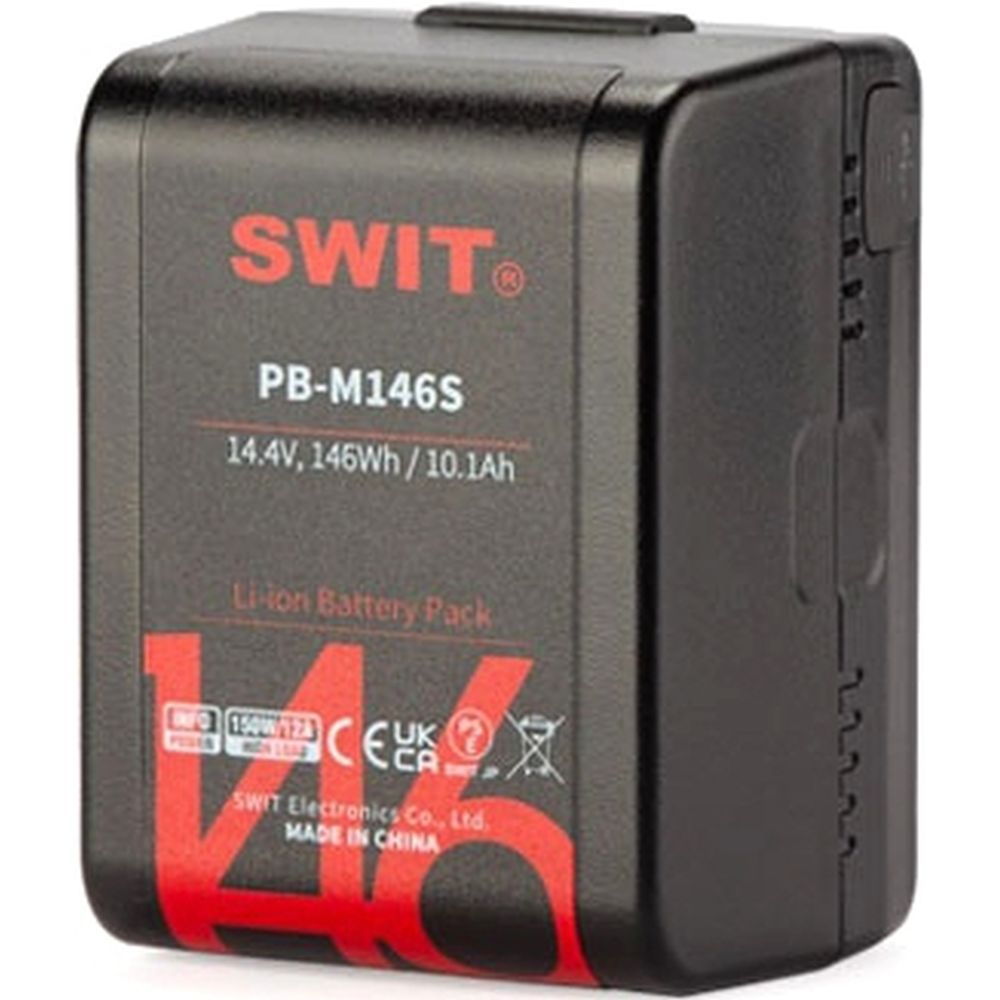

SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount

Article number:

12565652

SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
  • SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
  • SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
  • SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
  • SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
List price €398,-
€232,-
On order
SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount
€232,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
As the newest member of the PB-M series Pocket V-mount batteries, the SWIT PB-M146S 146Wh Pocket Mini High load Battery (V-Mount) offers greater capacity of 146 Wh for extended runtime, whilst maintaining its compact form factor for easy portability.

SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount

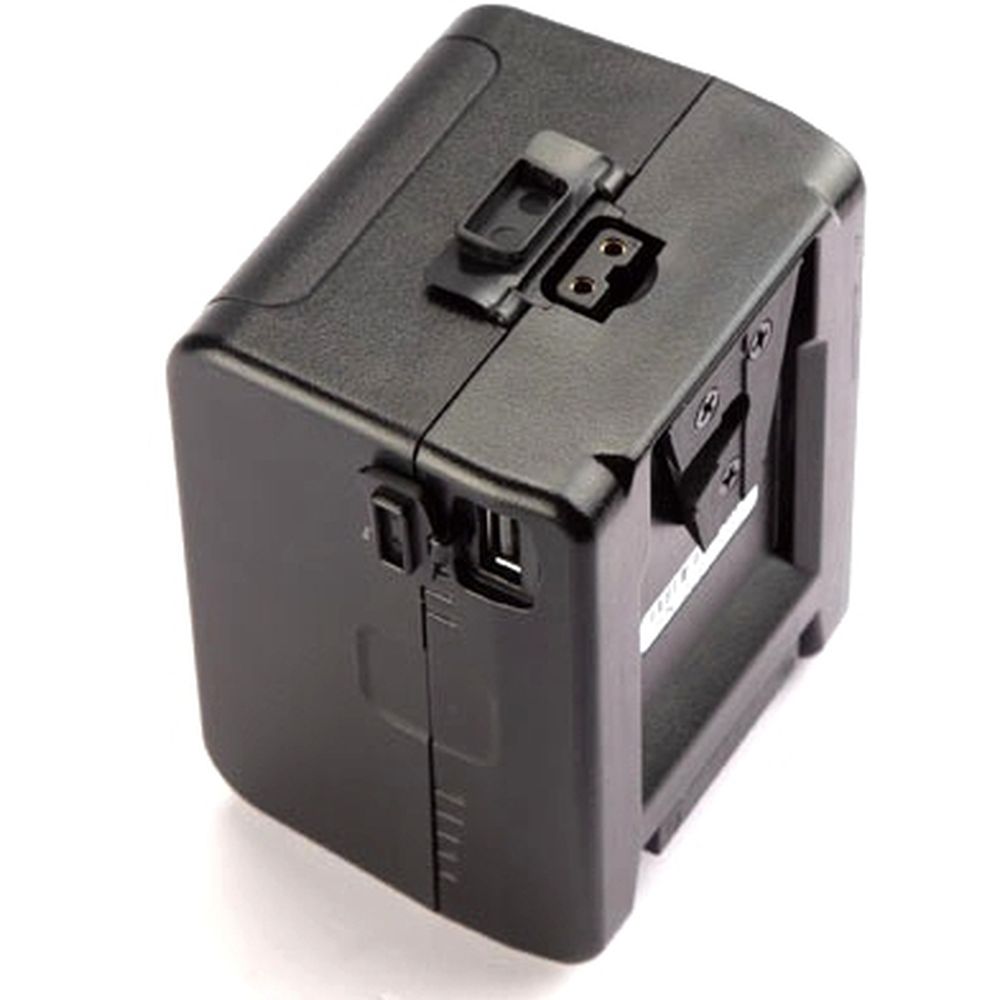

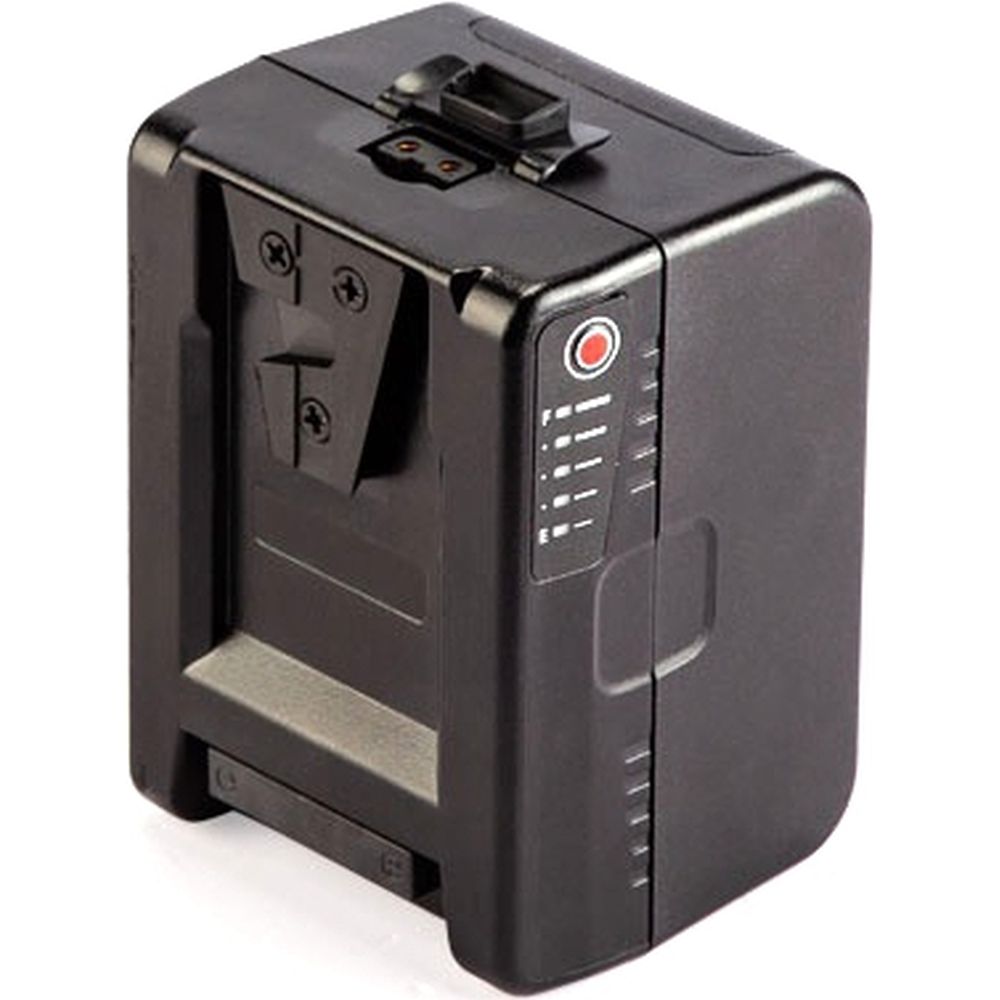

The PB-M146S has a rated voltage of 14.4 V, a large capacity of 146 Wh, a 5-step LED power indicator, a built-in D-tap DC output and charging input, and a USB-A 5V/2A power output. The continuous load is 150 W, 12 A.

You can hot-swap two PB-M146S batteries on cameras using the hot-swap adapter KA-M20S, allowing you to receive uninterrupted power when swapping batteries, similar to a standard V-mount battery. The PB-M146S can be charged with all standard V-mount chargers and D-tap chargers.

The following chargers are recommended:

1. S-3822S, portable 2-channel simultaneous charger: charging 2x PB-M146S: approx. 3 hours and 45 minutes

2. PC-U130B2, ultra-portable dual D-tap charger: charging 1x PB-M146S: approx. 3 hours and 45 minutes / charging 2x PB-M146S: approx. 6 hours

The PB-M pocket V-mount series is available in 45Wh, 98Wh, and 146Wh, with the same output connectors and the same base dimensions, but with different thicknesses.

The PB-M146S features innovative "wireless" internal technology. All cells, D-tap, USB, and power indicators are soldered directly onto the PCB, without connecting wires, to effectively reduce internal resistance and make the circuit stable, safe, and reliable.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT PB-M146S 146Wh Pocket Mini High load Battery, V-Mount

  • Compact V-mount battery, fits in your pocket
  • 146Wh/10.1Ah, ideal for air travel
  • 150W/12A continuous power at high load
  • 1x D-tap output and charging input
  • 1x USB 5V/2A output
  • 5-step LED power indicator
  • Power information for both Sony and RED
  • Wireless internal technology
  • Multiple circuit protections
  • Battery plate: V-mount
  • Nominal voltage: 14.4 V
  • USB: 10 W, 5 V/2 A
  • D-tap: 100 W / 10 A
  • Charging input: 16.8 V 3 A (max.)
  • Charging temperature: 0-40 °C
  • Discharging temperature: -20 °C to 50 °C (capacity and maximum load may decrease when used below 0 °C)
  • Dimensions: 100 x 74 x 63.7 mm
  • Weight: 720 grams

In the Box

  • 1x SWIT PB-M146S 146Wh Pocket Mini High load Battery (V-Mount)
Connections & Connectivity
USB-A ports (Units) 1.0 Units
Outputs D-Tap (uit + laadingang)
Dimensions & Weight
Length (mm) 100.0 mm
Weight (g) 720.0 g
Width (mm) 74.0 mm
Height (mm) 63.7 mm
General
Color Black
Max. current (A) 12.0 A
Power
Capacity (Wh) 146.0 Wh
Chemistry Li‑ion
D-Tap ports (Units) 1.0 Units
LED indicator
Max. output (W) 150.0 W
Charging via D‑Tap
Voltage (V) 14.4 V
USB‑C Power Delivery
