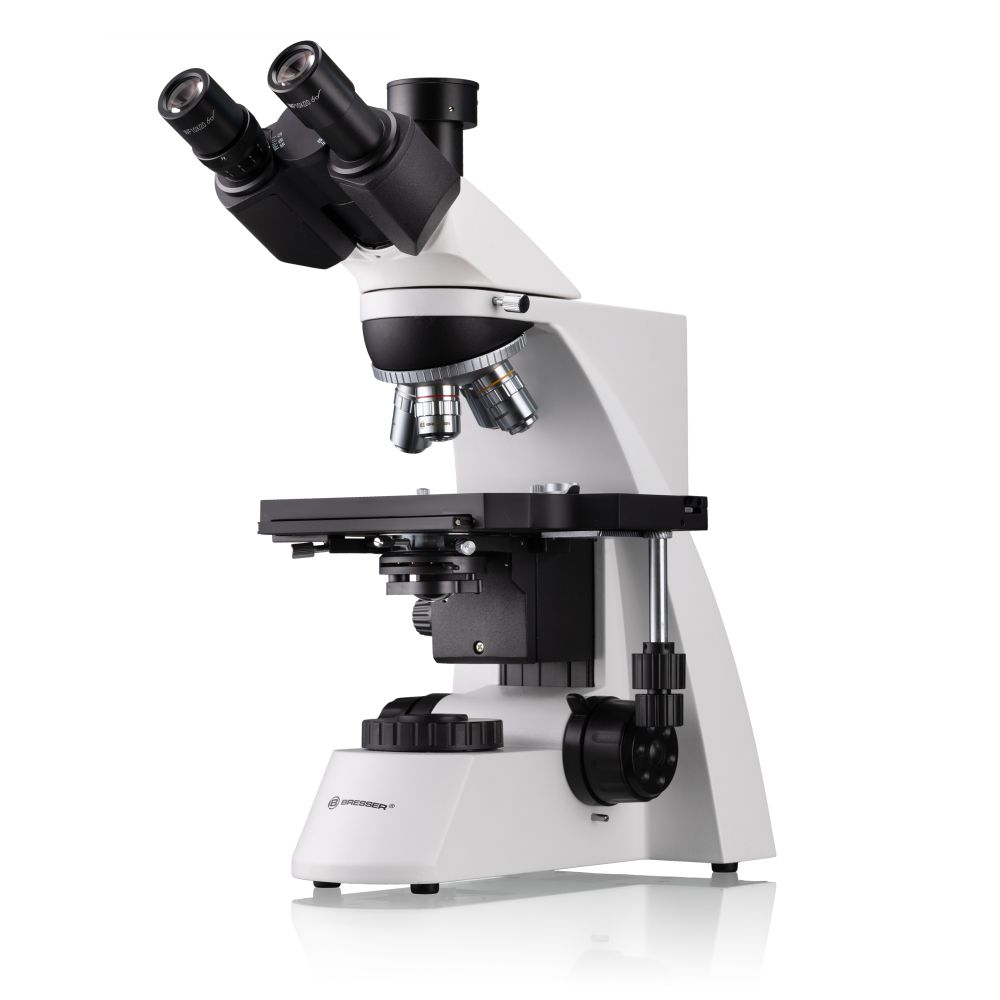

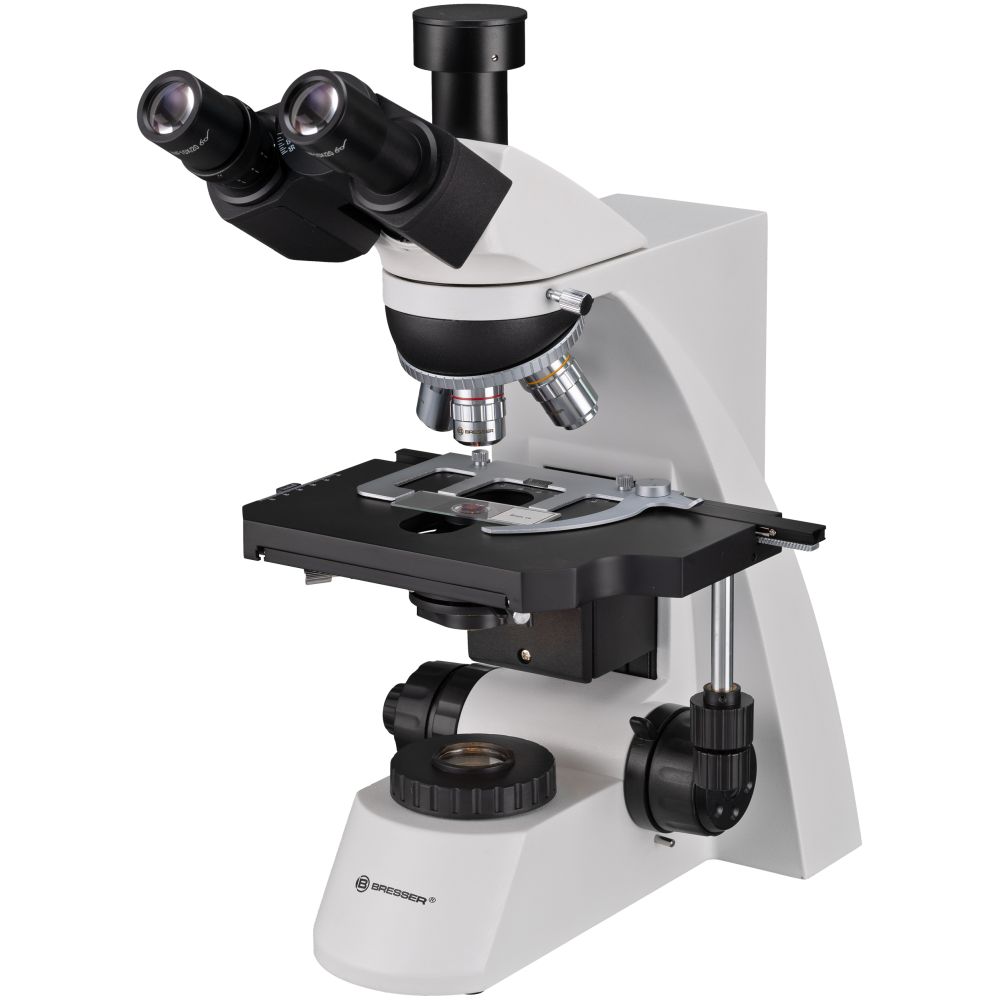

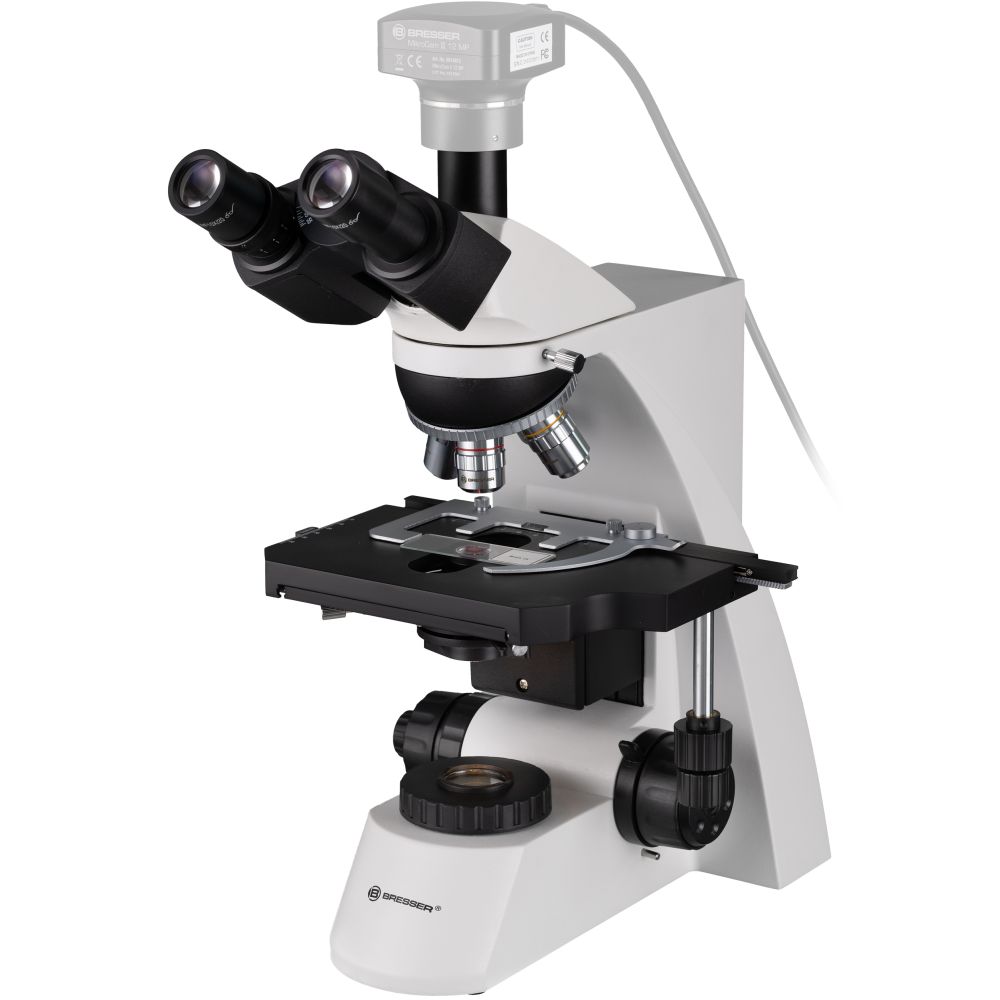

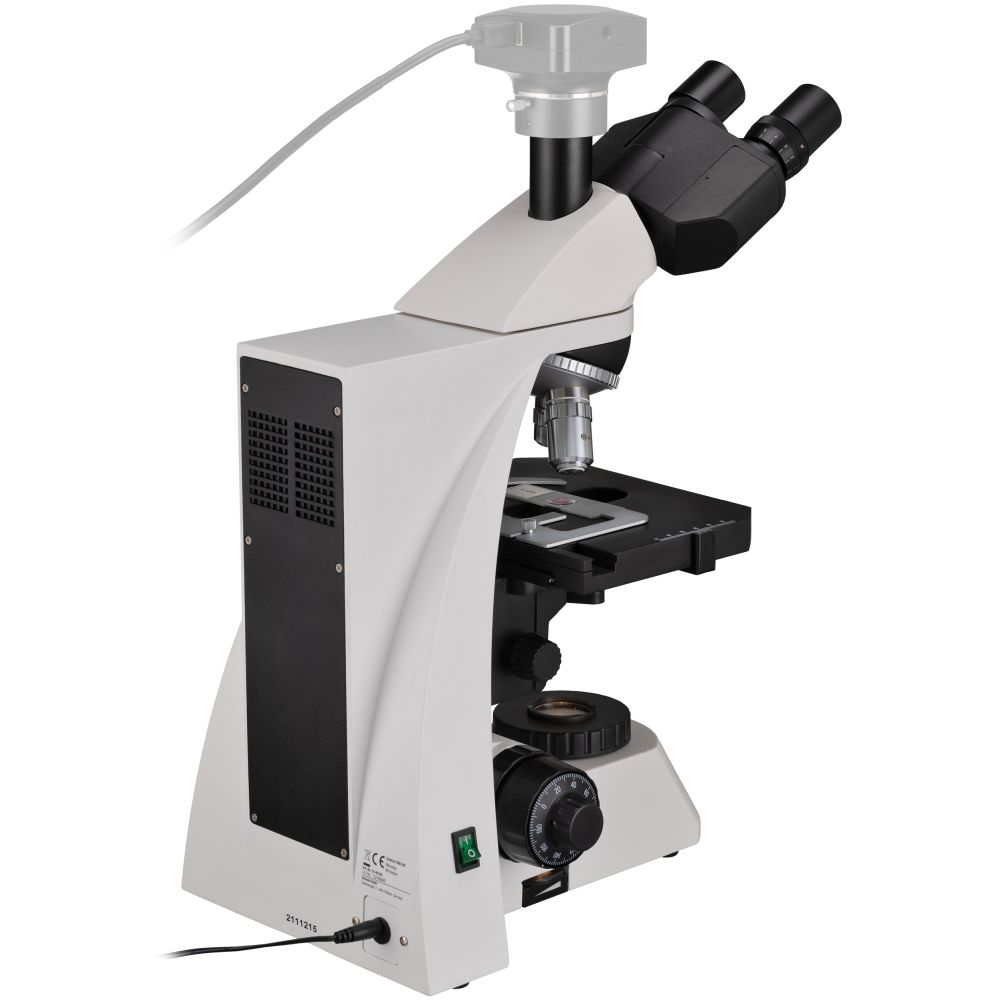

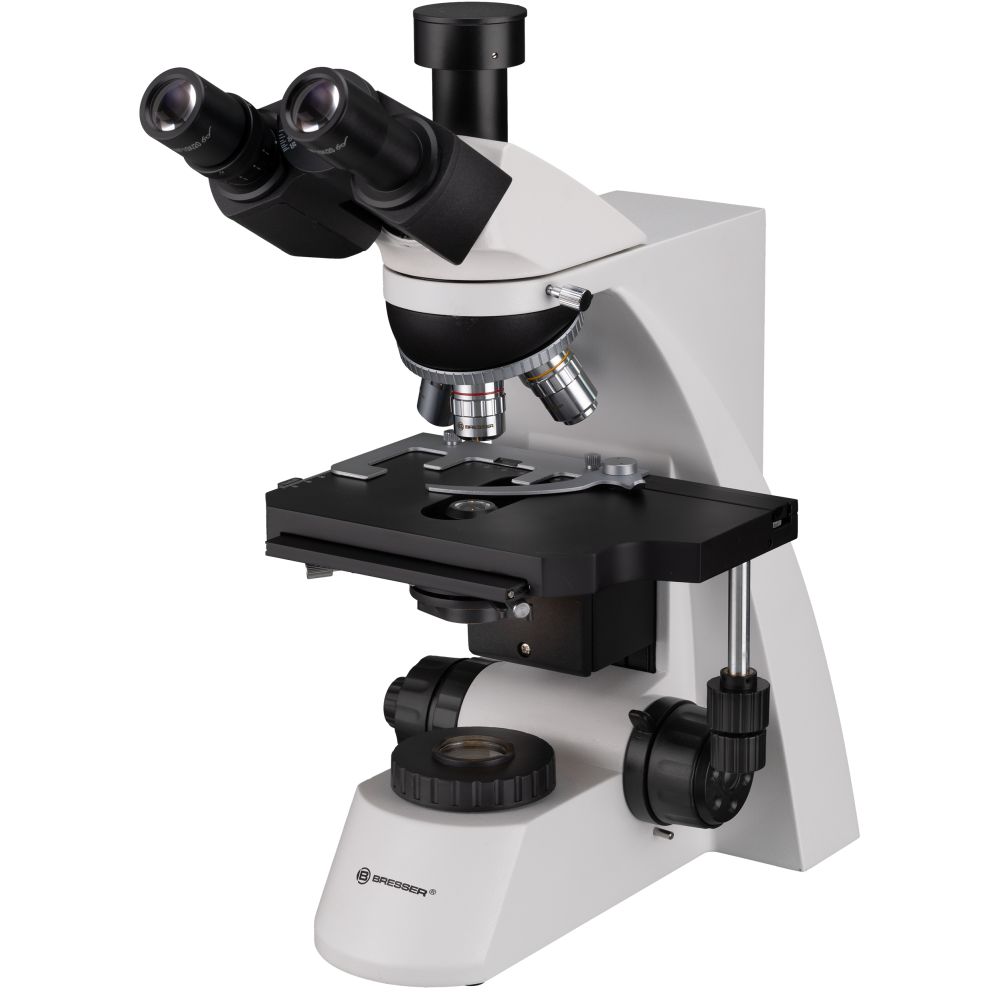

BRESSER Science TRM 301 40x - 1000x Transmitted light microscope

Article number:

12449418

Bresser Science TRM 301 40x - 1000x Illuminating Microscope

The Bresser Science TRM 301 40x - 1000x Illuminating Microscope is a top-quality trinocular biological illumination microscope. This means perfect images, good ergonomics, high stability and a modern, attractive design. It is a laboratory microscope suitable for intensive use, think of medicine, biology, agriculture and industrial application. In addition, this microscope can be referred to by hobbyists as a "microscope for life". An important feature of the TRM-301 is the possibility of using the Köhler illumination. This optimal illumination is unbeatably bright, cold (good for the object), homogeneous, reflection-free and with rich contrast.

The Köhler illumination is the standard for scientific research and micro-photography. This microscope has a fixed field aperture and a centrable and height-adjustable Abbe condenser (numerical aperture 1.25; with iris aperture). In addition, the TRM-301 has other features typical of high-quality microscopes: ergonomic coaxial focus wheel (fine drive: 200µm/full turn), continuous dimmer, planachromatic objectives (4x, 10x, 40x, 100x-oil), 10x wide-angle eyepieces (mounted in eyepiece tubes with a 30-degree inclination), adjustment of eye reliëf, diopter adjustment and a photo tube.

Information on the EU General Product Safety Regulation (GPSR)

Bresser Benelux / Folux bv

Donau 5-12, 7908 HA Hoogeveen, Nederland

Features of the BRESSER Science TRM 301 40x - 1000x Transmitted light microscope

  • Translucent microscope
  • Type of head: Trinocular
  • Magnification: 40x - 1000x
  • Ocular(s): WF 10x (23 mm) pair
  • Objectives: DIN 4x / 10x / 40x / 100x oil
  • Type of objective: Planachromatic
  • Condensator: Abbe N.A. 1.25
  • Lighting: 12V / 30W halogen with dimmer
  • Power supply: 230V mains
  • Optical design: biologic
  • Magnification from: 40
  • Magnification to: 1000
  • Diopter compensation
  • Power supply: 180-250V at 50 Hz or 100-120V at 60 Hz AC
  • Casing material: aluminium
  • Focusing drive: coarse- and fine-focus (coaxial; 200 mym/rev)
  • Cross-table type: DeLuxe cross-table with one-hand operation
  • Dimensions (LxWxH): 360 x 210 x 430 mm
  • Weight: 8.800 grams
  • Colour: white

In the Box

  • Bresser Science TRM 301 40x - 1000x X-ray microscope
  • Immersion oil
  • 230 V Mains cable (12V / 3.3 A)
  • Manual (D/EN/F)
Dimensions & Weight
Length (mm) 360.0 mm
Weight (g) 8800.0 g
Width (mm) 210.0 mm
Height (mm) 430.0 mm
General
Color White
Material & Protection
Material Aluminum
Magnification (max) (x) 1000.0 x
Magnification (min) (x) 40.0 x
