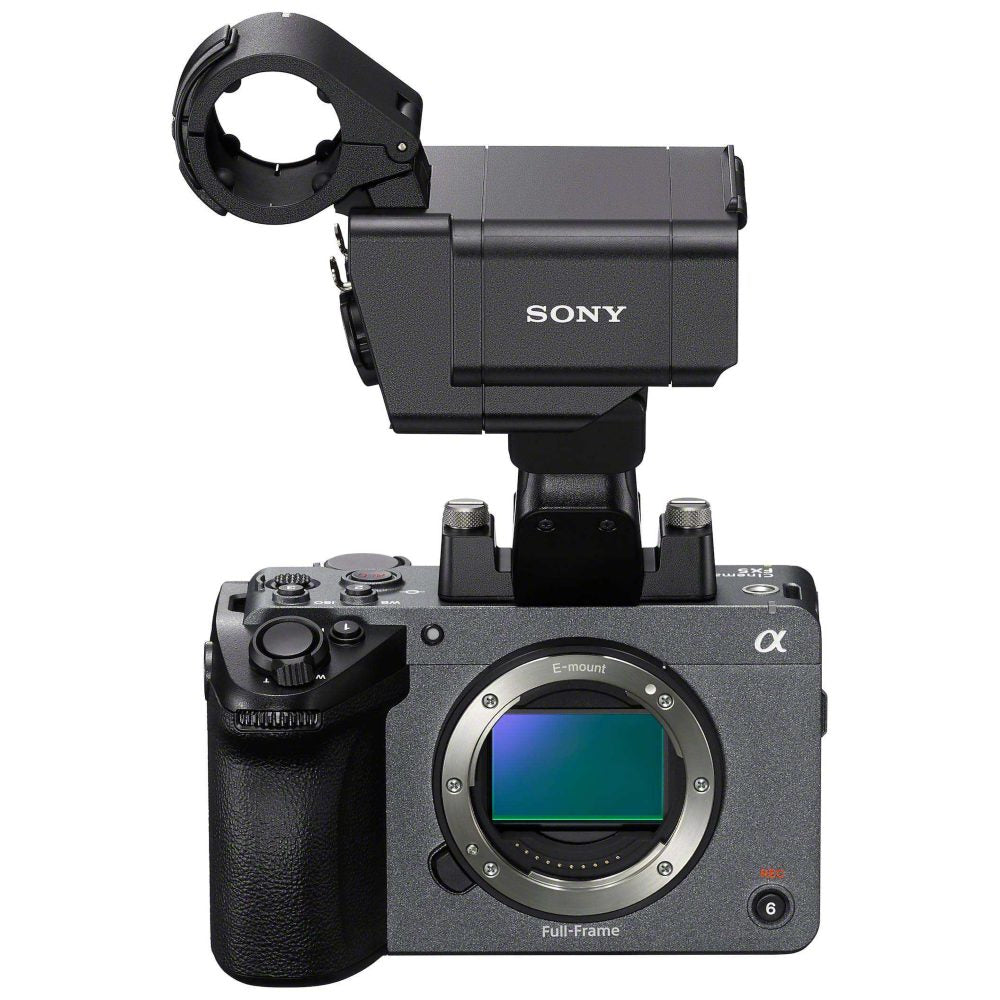

Sony FX5 Cinemaline + XLR Grip for FX5
Meet the Sony FX5 with XLR Handle Unit: the complete cine-camera setup if you want professional audio recording. This bundle includes the Sony FX5 camera and the Sony XLR-H2 handle. In addition to the newly developed 16.6-megapixel full-frame sensor, Open Gate recording and internal X-OCN, you also get the XLR-H2 right away, ready for 4-channel 32-bit float audio from day one.
Sony FX5 body Cinema Line
! Please note: some video specifications, such as 5K 120fps recording and Open Gate in XAVC 4K, will only become available via a firmware update, expected in August 2027 or later.
The Sony FX5 is a compact professional cine camera with a 16.6-megapixel full-frame stacked Exmor RS sensor and the new BIONZ XR2 processor with integrated AI unit. The camera brings Open Gate recording, internal X-OCN recording and Three Base ISO to the FX series: features that were previously reserved for higher-end models in the Cinema Line. At launch, you can already record up to 4K 120fps and Full HD up to 240fps; via the future firmware update, this will expand to 5K 120fps and 4K 240fps slow motion in X-OCN.
Flagship-level image quality
At the heart of the FX5, the stacked Exmor RS sensor, with a stacked design for faster readout, and the BIONZ XR2 processor work together. The sensor combines a wide dynamic range, the difference between the darkest and brightest details the camera can still capture, with a high readout speed, for rich cinematic images while preserving detail in both bright and dark areas. With a dynamic range of more than 15 stops, information is retained in highlights as well as shadows, for smooth, rich colour gradation.
Room for creative freedom in shooting and editing
Open Gate recording uses the full sensor area instead of a crop and is already available on the FX5 at launch: up to 5016 x 3344 pixels in 3:2 via X-OCN at 60fps. Later, with the future firmware update, this expands to 120fps, Open Gate also becomes available in XAVC 4K, and the regular Full Frame 16:9 and 17:9 recording modes will also support up to 120fps in X-OCN. Internal X-OCN recording, Sony's own RAW video format, delivers 16-bit colour depth without requiring an external recorder. Three Base ISO (800, 4000 and 12800) makes it easier to capture clean images with a wide dynamic range in varying lighting conditions: the sensor switches between three points at which the least image noise occurs. A new Dual Gain mode reduces noise in dark areas and further expands dynamic range in the shadows.
Familiar controls for professional results

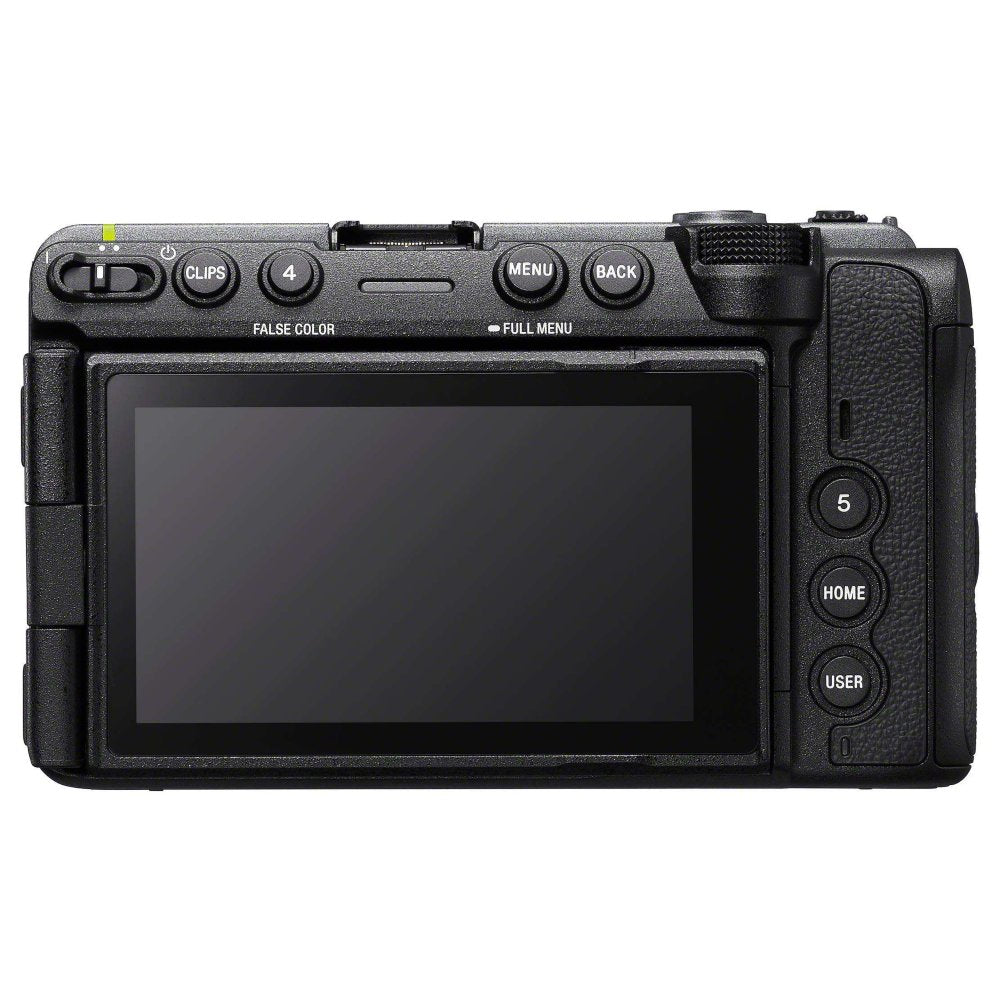

The controls are built around a clear menu layout and home screen, with buttons such as HOME, USER and a Multi Function Dial for fast access to your settings. The 3.5-inch screen tilts on 4 axes in almost any direction. Settings and indicators are shown via a black OSD display, so your view of the image remains unobstructed while filming. For accurate exposure and focus, you have false colour, which shows exposure at a glance through colour coding, waveform and vector scopes, which graphically display brightness and colour, and focus map, which visually marks what is in focus, in addition to the existing histogram, zebra and peaking functions. AI-driven subject recognition via the BIONZ XR2 recognises humans, animals and birds separately, with a new priority setting for animals and birds, and keeps your subject sharply in frame even at high ISO values and in low light.
Equipped for professional workflows
At launch, the FX5 already records up to 4K 120fps and Full HD up to 240fps, for smooth slow motion in a range of formats. Full 5K 120fps and 4K 240fps slow motion in X-OCN will follow later via the future firmware update, for even more room to slow down action in detail. With anamorphic de-squeeze ratios up to 2.0x, which convert the compressed image from an anamorphic lens back to the correct aspect ratio, you can monitor in real time with a wider range of anamorphic lenses than its predecessor. With the new optional XLR Handle Unit, a handle with professional microphone connections, you can record audio in 96 kHz/32-bit float. For multi-camera productions, you can easily synchronise timecode via the new TC cable, and the optional tiltable electronic viewfinder with 7,077,888-dot OLED gives you precise control while filming.

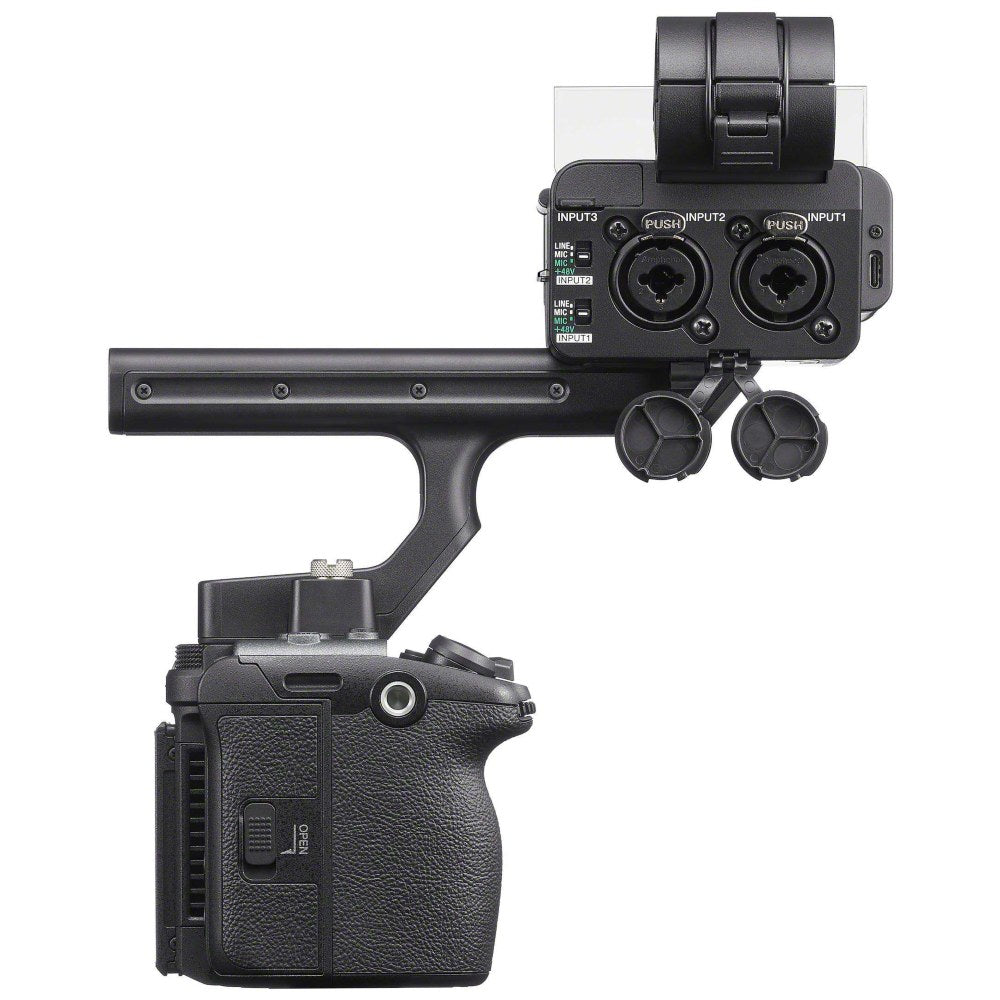

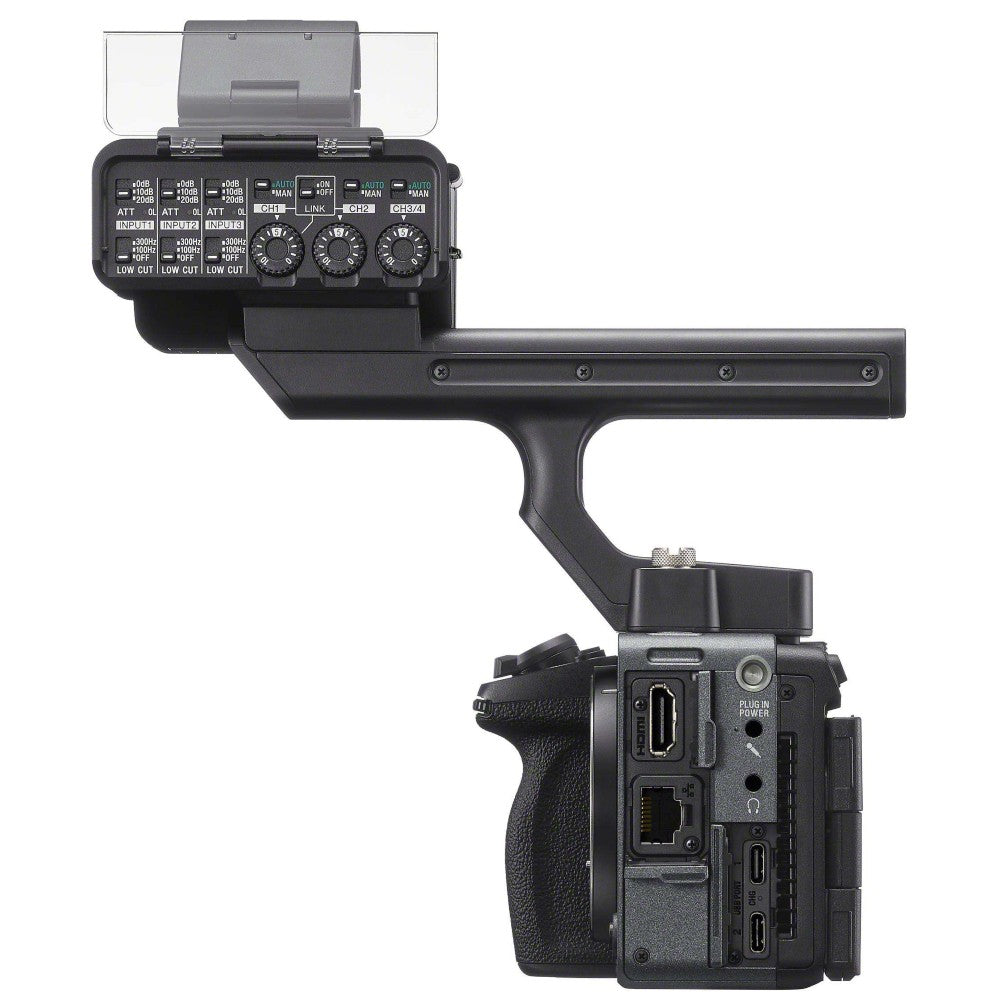

Sony XLR Handle for FX5
With the Sony XLR-H2 handle, you can capture professional-quality audio thanks to 96 kHz/32-bit float recording. This standard offers a wide dynamic range and clip-resistant reliability, so your audio is well preserved even in demanding production environments.
The XLR grip is specifically designed for use on set and improves the balance of the camera, resulting in stable and comfortable shooting. This allows the operator to move freely and reduces fatigue during long handheld recordings.
Features of the Sony XLR Handle for FX5
- 4-channel 32-bit float audio recording
- Recording quality up to 96 kHz
- Wide dynamic range with clip-resistant recording
- Optimised ergonomic design for stable shooting
- Improved camera balance during handheld use
- Reduces fatigue during long recording sessions
- Approx. weight: 324 grams
- Developed for the Sony FX5
